TAD1346GE

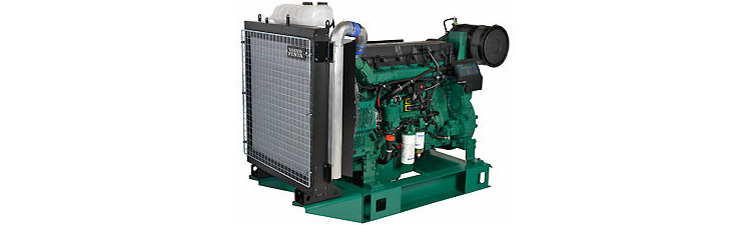

The TAD1346GE is a powerful, reliable and economical Generating Set Diesel Engine built on the dependable in-line six design.
Durability & low noise
Designed for easiest, fastest and most economical installation.
Well-balanced to produce smooth and vibration-free operation with low noise level. To maintain a controlled working temperature in cylinders and combustion chambers, the engine is equipped with piston cooling. The engine is also fitted with replaceable cylinder liners and valve seats/guides to ensure maximum durability and service life of the engine.
Low exhaust emission
The state of the art, high-tech injection and charging system with low internal losses contributes to excellent combustion and low fuel consumption. The TAD1346GE is certified for EPA Tier 2. An additional feature is that TAD1346GE fulfils EU Stage 2 exhaust emission levels.
Easy service & maintenance
Easily accessible service and maintenance points contribute to the ease of service of the engine.
• Excellent load acceptance
• Highly efficient cooling system
• RoHS2 compliant
• Dual Speed 1500/1800 rpm
• EMS 2.4
|
|
Technical Data |
|
Engine Model |
TAD1346GE |
|
Product Period |
2022- |
|
Operation |
4-Stroke |
|
Cylinder Configuration |
6 |
|
Bore (mm) |
131 |
|
Stroke (mm) |
158 |
|
Compression Ratio |
17.8:1 |
|
Displacement (L) |
12.78 |
|
Prime Power @1500 rpm (kVA) |
502 |
|
Engine Speed (rpm) |
1500 / 1800 |
|
